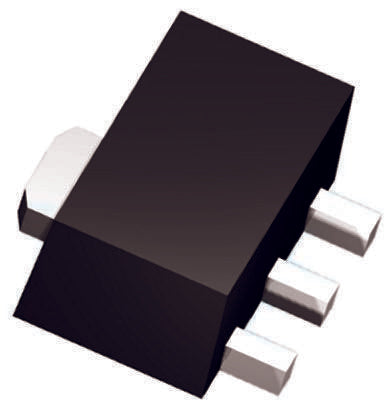

ZXMN10A07ZTA N-Channel MOSFET, 1.4 A, 100 V, 3-Pin SOT-89 Diodes Inc [ZXMN10A07ZTA]; 121-9963
by DiodesZetex
0₫
Mã kho: 1219963
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 1.4 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | SOT-89 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 700 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 2.6 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 2.6mm |
| Minimum Operating Temperature | -55 °C |
| Height | 1.6mm |
| Typical Gate Charge @ Vgs | 2.9 nC @ 10 V |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
| Length | 4.6mm |
