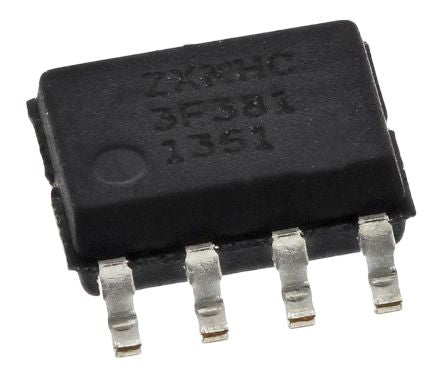

ZXMHC3F381N8TC Quad N/P-Channel MOSFET, 4.1 A, 4.98 A, 30 V, 8-Pin SOIC Diodes Inc [ZXMHC3F381N8TC]; 122-1424
by DiodesZetex
0₫
Mã kho: 1221424
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N, P |
Maximum Continuous Drain Current | 4.1 A, 4.98 A |
Maximum Drain Source Voltage | 30 V |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 60 mΩ, 80 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 1.35 W |
Transistor Configuration | Full Bridge |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 4 |
Transistor Material | Si |
Width | 4mm |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Height | 1.5mm |
Typical Gate Charge @ Vgs | 9 nC @ 10 V |
Length | 5mm |
