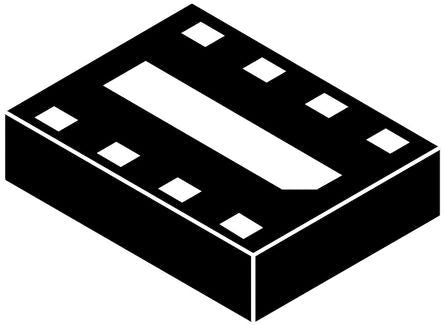

![DiodesZetex ZXMC3AMCTA 1222424](http://nguyenxuong.com/cdn/shop/products/R1222424-01_444x326.jpg?v=1594400447)
ZXMC3AMCTA Dual N/P-Channel MOSFET, 2.1 A, 3.7 A, 30 V, 8-Pin DFN Diodes Inc [ZXMC3AMCTA]; 122-2424
by DiodesZetex
0₫
Mã kho: 1222424
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N, P |
Maximum Continuous Drain Current | 2.1 A, 3.7 A |
Maximum Drain Source Voltage | 30 V |
Package Type | DFN |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 180 mΩ, 330 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 2.45 W |
Transistor Configuration | Isolated |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 2 |
Minimum Operating Temperature | -55 °C |
Width | 2.075mm |
Height | 0.78mm |
Maximum Operating Temperature | +150 °C |
Transistor Material | Si |
Length | 3.08mm |
Typical Gate Charge @ Vgs | 3.9 nC @ 10 V, 6.4 nC @ 10 V |
