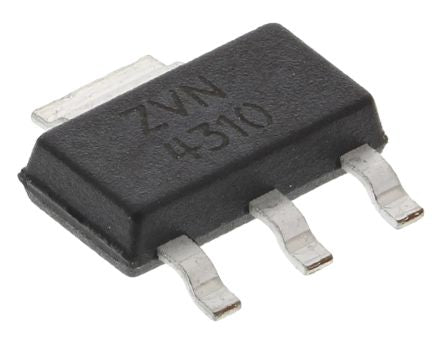

ZVN4310GTA N-Channel MOSFET, 1.67 A, 100 V, 3+Tab-Pin SOT-223 Diodes Inc [ZVN4310GTA]; 922-7879
by DiodesZetex
0₫
Mã kho: 9227879
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 1.67 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | SOT-223 |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 540 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 3 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 6.7mm |
| Transistor Material | Si |
| Height | 1.65mm |
| Width | 3.7mm |
