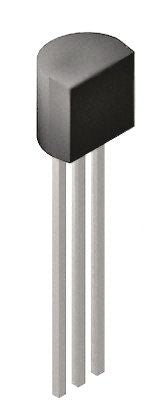

ZVN4206AVSTZ N-Channel MOSFET, 600 mA, 60 V, 3-Pin TO-92 Diodes Inc [ZVN4206AVSTZ]; 823-1827
by DiodesZetex
0₫
Mã kho: 8231827
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 600 mA |
| Maximum Drain Source Voltage | 60 V |
| Package Type | TO-92 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 1.5 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 700 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Width | 2.41mm |
| Height | 4.01mm |
| Length | 4.77mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
