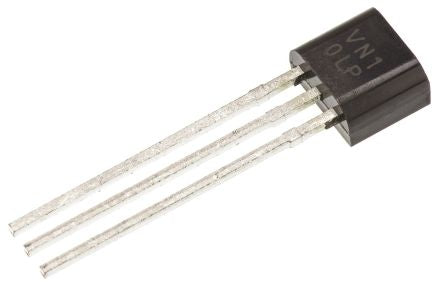

![DiodesZetex VN10LP 841277](http://nguyenxuong.com/cdn/shop/products/F0841277-01_49170510-b378-4191-b33d-deb500deccd9_444x286.jpg?v=1594044162)
VN10LP N-Channel MOSFET, 270 mA, 60 V, 3-Pin E-Line Diodes Inc [VN10LP]; 841-277
by DiodesZetex
0₫
Mã kho: 841277
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 270 mA |
Maximum Drain Source Voltage | 60 V |
Package Type | E-Line |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 5 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.5V |
Maximum Power Dissipation | 625 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Maximum Operating Temperature | +150 °C |
Height | 4.01mm |
Transistor Material | Si |
Length | 4.77mm |
Width | 2.41mm |
Minimum Operating Temperature | -55 °C |
