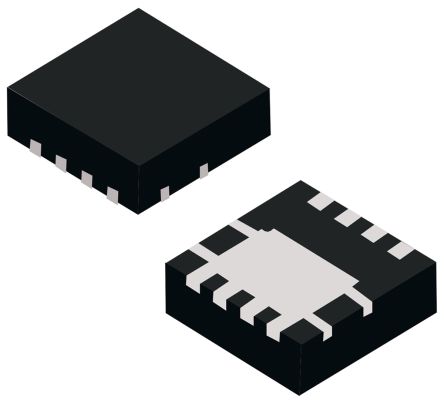

DMT8012LFG-7 N-Channel MOSFET, 35 A, 80 V, 8-Pin POWERDI3333 Diodes Inc [DMT8012LFG-7]; 165-8433
by DiodesZetex
0₫
Mã kho: 1658433
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 35 A |
| Maximum Drain Source Voltage | 80 V |
| Package Type | POWERDI3333 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 22 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 30 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 3.35mm |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage | 1.2V |
| Height | 0.8mm |
| Length | 3.35mm |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 34 nC @ 10 V |
