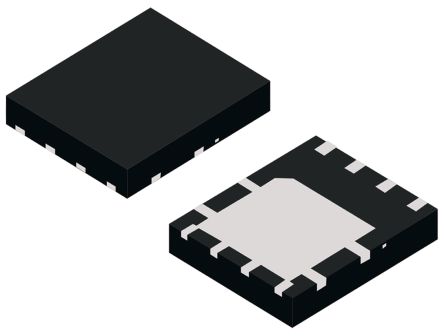

DMT6016LPS-13 N-Channel MOSFET, 32 A, 60 V, 8-Pin POWERDI5060 Diodes Inc [DMT6016LPS-13]; 165-8401
by DiodesZetex
0₫
Mã kho: 1658401
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 32 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | POWERDI5060 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 24 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 2.7 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 6mm |
| Height | 1.05mm |
| Typical Gate Charge @ Vgs | 17 nC @ 10 V |
| Length | 5.1mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
