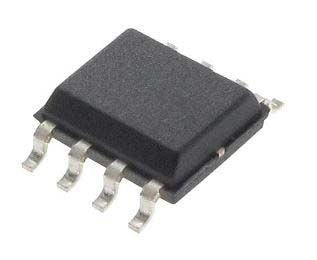

![DiodesZetex DMPH6050SSD-13 1464665](http://nguyenxuong.com/cdn/shop/products/Y1464665-01_317x260.jpg?v=1594430345)
DMPH6050SSD-13 Dual P-Channel MOSFET, 5.2 A, 60 V DMP, 8-Pin SOIC Diodes Inc [DMPH6050SSD-13]; 146-4665
by DiodesZetex
0₫
Mã kho: 1464665
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 5.2 A |
Maximum Drain Source Voltage | 60 V |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 60 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 3V |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 1.5 W |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 2 |
Width | 3.95mm |
Minimum Operating Temperature | -55 °C |
Series | DMP |
Length | 4.95mm |
Forward Diode Voltage | 1.2V |
Automotive Standard | AEC-Q101 |
Typical Gate Charge @ Vgs | 30.6 @ 10 V nC |
Height | 1.5mm |
Maximum Operating Temperature | +175 °C |
