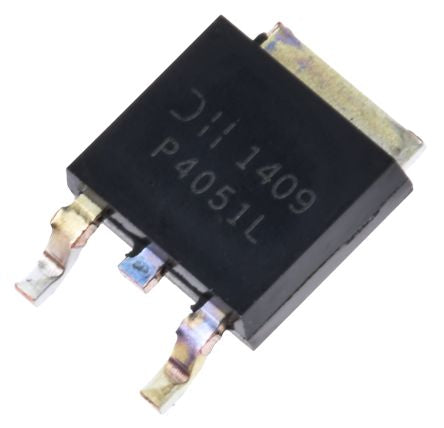

DMP4051LK3-13 P-Channel MOSFET, 10.5 A, 40 V, 3-Pin DPAK Diodes Inc [DMP4051LK3-13]; 751-4281
by DiodesZetex
0₫
Mã kho: 7514281
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 10.5 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | DPAK (TO-252) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 85 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 8.9 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Height | 2.39mm |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 14 nC @ 10 V |
| Length | 6.7mm |
| Maximum Operating Temperature | +150 °C |
| Width | 6.2mm |
