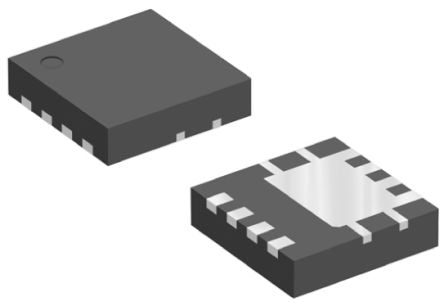

DMP4025SFG-7 P-Channel MOSFET, 7.2 A, 40 V, 8-Pin POWERDI3333 Diodes Inc [DMP4025SFG-7]; 790-4621
by DiodesZetex
0₫
Mã kho: 7904621
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 7.2 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | POWERDI3333 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 45 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.8V |
| Maximum Power Dissipation | 810 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Width | 3.35mm |
| Length | 3.35mm |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 33.7 nC @ 10 V |
| Height | 0.8mm |
