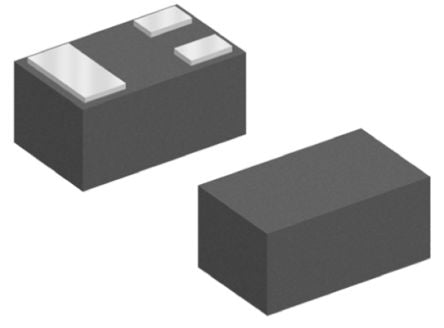

DMP32D4SFB-7B P-Channel MOSFET, 500 mA, 30 V, 3-Pin X1-DFN1006 Diodes Inc [DMP32D4SFB-7B]; 169-7187
by DiodesZetex
0₫
Mã kho: 1697187
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 500 mA |
| Maximum Drain Source Voltage | 30 V |
| Package Type | X1-DFN1006 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 16 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.4V |
| Maximum Power Dissipation | 1.2 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 1.3 nC @ 10 V |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Length | 1.08mm |
| Width | 0.675mm |
| Height | 0.48mm |
