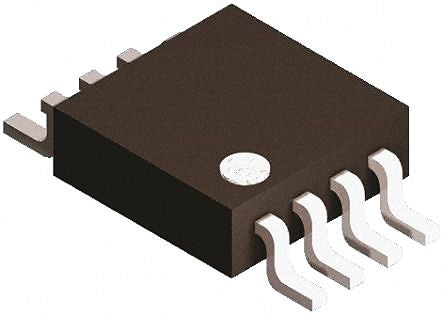

![DiodesZetex DMP3056LSS-13 8234037](http://nguyenxuong.com/cdn/shop/products/R8234037-01_444x316.jpg?v=1594062268)
DMP3056LSS-13 P-Channel MOSFET, 6 A, 30 V, 8-Pin SOP Diodes Inc [DMP3056LSS-13]; 823-4037
by DiodesZetex
0₫
Mã kho: 8234037
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 0.25 |
Maximum Drain Source Voltage | 30 V |
Package Type | SOP |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 65 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.1V |
Maximum Power Dissipation | 2.5 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Length | 5.3mm |
Typical Gate Charge @ Vgs | 13.7 nC @ 10 V |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Height | 1.5mm |
Transistor Material | Si |
Width | 4.1mm |
