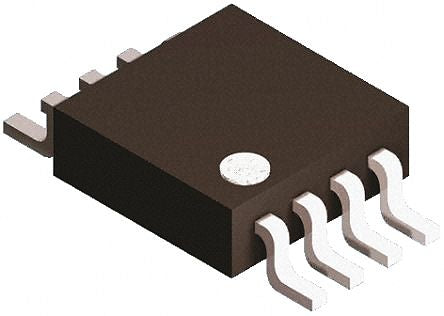

DMP3020LSS-13 P-Channel MOSFET, 6 A, 30 V, 8-Pin SOP Diodes Inc [DMP3020LSS-13]; 122-3279
by DiodesZetex
0₫
Mã kho: 1223279
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 0.25 |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 25 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 2.5 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 30.7 nC @ 10 V |
| Width | 3.95mm |
| Height | 1.5mm |
| Length | 4.95mm |
| Transistor Material | Si |
