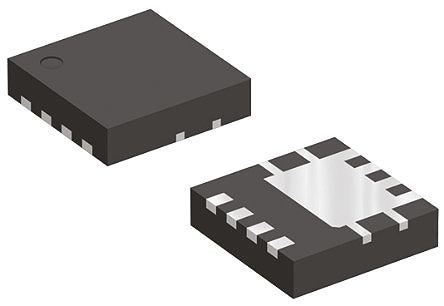

DMP3010LPS-13 P-Channel MOSFET, 7 A, 30 V, 8-Pin POWERDI5060 Diodes Inc [DMP3010LPS-13]; 822-2633
by DiodesZetex
0₫
Mã kho: 8222633
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 0.291666666666667 |
Maximum Drain Source Voltage | 30 V |
Package Type | POWERDI5060 |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 10 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.1V |
Maximum Power Dissipation | 58.7 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Width | 5.1mm |
Height | 1.1mm |
Length | 6mm |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 126.2 nC @ 10 V |
Transistor Material | Si |
