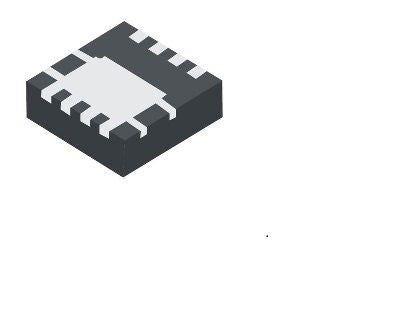

DMP3007SFG-13 P-Channel MOSFET, 70 A, 30 V DMP, 8-Pin PowerDI3333 Diodes Inc [DMP3007SFG-13]; 146-4890
by DiodesZetex
0₫
Mã kho: 1464890
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 70 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | PowerDI3333 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 13 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 2.8 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±25 V |
| Number of Elements per Chip | 1 |
| Width | 3.35mm |
| Maximum Operating Temperature | +150 °C |
| Length | 3.35mm |
| Height | 0.78mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 64.2 @ 10 V nC |
| Forward Diode Voltage | 1.2V |
| Series | DMP |
