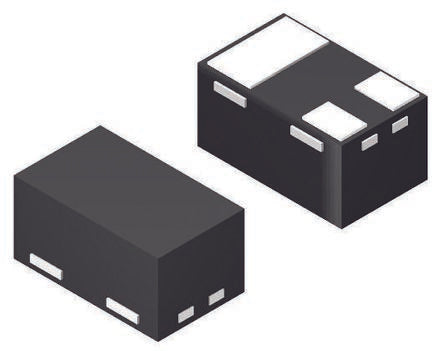

DMP21D5UFB4-7B P-Channel MOSFET, 700 mA, 20 V, 3-Pin X2-DFN1006 Diodes Inc [DMP21D5UFB4-7B]; 169-0800
by DiodesZetex
0₫
Mã kho: 1690800
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 700 mA |
| Maximum Drain Source Voltage | 20 V |
| Package Type | X2-DFN1006 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 3 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 950 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Width | 0.65mm |
| Transistor Material | Si |
| Length | 1.05mm |
| Height | 0.35mm |
| Typical Gate Charge @ Vgs | 0.5 nC @ 4.5 V |
| Minimum Operating Temperature | -55 °C |
