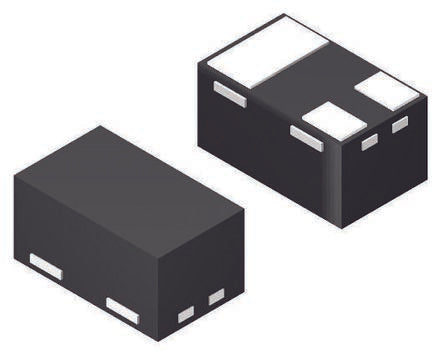

DMP21D0UFB4-7B P-Channel MOSFET, 1.17 A, 20 V, 3-Pin X2-DFN1006 Diodes Inc [DMP21D0UFB4-7B]; 770-5162
by DiodesZetex
0₫
Mã kho: 7705162
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 1.17 A |
Maximum Drain Source Voltage | 20 V |
Package Type | X2-DFN1006 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 960 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1.2V |
Maximum Power Dissipation | 990 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -8 V, +8 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 1.5 nC @ 8 V |
Minimum Operating Temperature | -55 °C |
Height | 0.35mm |
Maximum Operating Temperature | +150 °C |
Width | 0.65mm |
Transistor Material | Si |
Length | 1.05mm |
