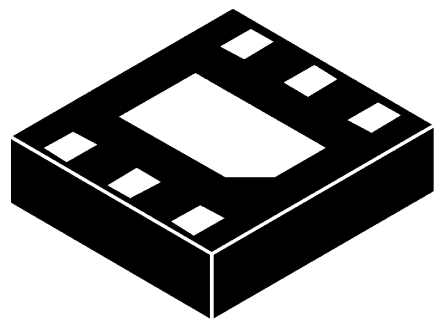

DMP2066UFDE-7 P-Channel MOSFET, 6.2 A, 20 V, 6-Pin U-DFN2020 Diodes Inc [DMP2066UFDE-7]; 169-0798
by DiodesZetex
0₫
Mã kho: 1690798
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 6.2 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | U-DFN2020 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 75 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.1V |
| Maximum Power Dissipation | 2.03 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Width | 2.05mm |
| Height | 0.58mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 14.4 nC @ 4.5 V |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Length | 2.05mm |
