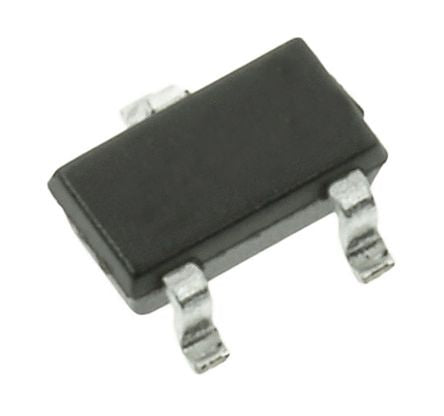

DMP2066LSN-7 P-Channel MOSFET, 3.7 A, 20 V, 3-Pin SOT-346 Diodes Inc [DMP2066LSN-7]; 169-7350
by DiodesZetex
0₫
Mã kho: 1697350
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 3.7 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | SOT-346 (SC-59) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 70 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 1.25 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Width | 1.7mm |
| Minimum Operating Temperature | -55 °C |
| Height | 1.3mm |
| Transistor Material | Si |
| Length | 3.1mm |
| Typical Gate Charge @ Vgs | 10.1 nC @ 4.5 V |
| Maximum Operating Temperature | +150 °C |
