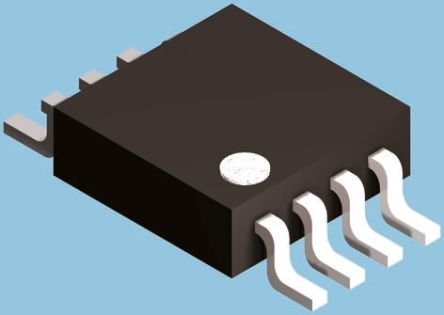

DMP2066LSD-13 Dual P-Channel MOSFET, 5.8 A, 20 V, 8-Pin SOP Diodes Inc [DMP2066LSD-13]; 751-4222
by DiodesZetex
0₫
Mã kho: 7514222
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 5.8 A |
Maximum Drain Source Voltage | 20 V |
Package Type | SOP |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 70 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1.2V |
Maximum Power Dissipation | 2 W |
Transistor Configuration | Isolated |
Maximum Gate Source Voltage | -12 V, +12 V |
Number of Elements per Chip | 2 |
Height | 1.5mm |
Maximum Operating Temperature | +150 °C |
Length | 5.3mm |
Width | 4.1mm |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 10.1 nC @ 10 V |
Transistor Material | Si |
