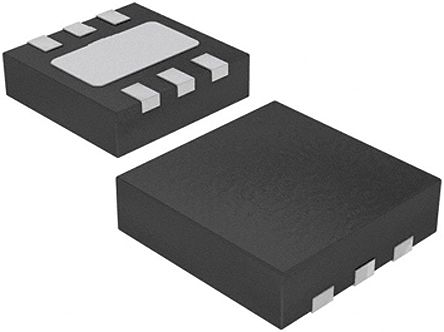

![DiodesZetex DMP2021UFDF-7 1658424](http://nguyenxuong.com/cdn/shop/products/R9211296-01_b8b5d45f-4356-4416-95b2-bae6a2100609_444x332.jpg?v=1594396471)
DMP2021UFDF-7 P-Channel MOSFET, 11 A, 20 V, 6-Pin U-DFN2020 Diodes Inc [DMP2021UFDF-7]; 165-8424
by DiodesZetex
0₫
Mã kho: 1658424
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 0.458333333333333 |
Maximum Drain Source Voltage | 20 V |
Package Type | U-DFN2020 |
Mounting Type | Surface Mount |
Pin Count | 6 |
Maximum Drain Source Resistance | 80 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1V |
Minimum Gate Threshold Voltage | 0.35V |
Maximum Power Dissipation | 2.02 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -8 V, +8 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Width | 2.05mm |
Length | 2.05mm |
Forward Diode Voltage | 1.2V |
Maximum Operating Temperature | +150 °C |
Transistor Material | Si |
Height | 0.58mm |
Typical Gate Charge @ Vgs | 59 nC @ 8 V |
