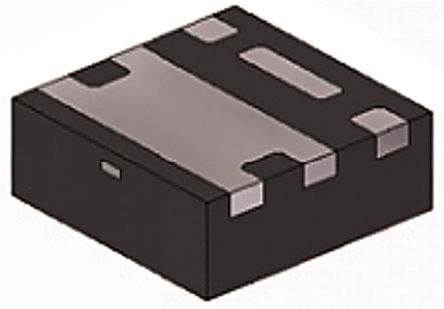

DMN6070SFCL-7 N-Channel MOSFET, 3 A, 60 V, 6-Pin X1-DFN1616 Diodes Inc [DMN6070SFCL-7]; 165-8365
by DiodesZetex
0₫
Mã kho: 1658365
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.125 |
| Maximum Drain Source Voltage | 60 V |
| Package Type | X1-DFN1616 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 120 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 1.8 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 1.65mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
| Minimum Operating Temperature | -55 °C |
| Width | 1.65mm |
| Height | 0.48mm |
| Typical Gate Charge @ Vgs | 12.3 nC @ 10 V |
