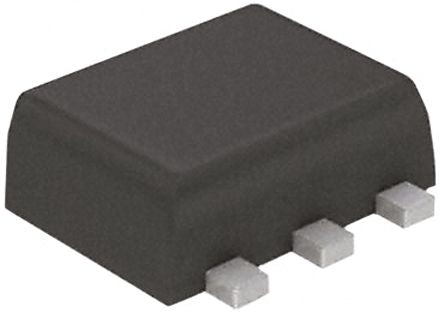

DMN5L06VAK-7 Dual N-Channel MOSFET, 280 mA, 50 V, 6-Pin SOT-563 Diodes Inc [DMN5L06VAK-7]; 822-2586
by DiodesZetex
0₫
Mã kho: 8222586
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 280 mA |
| Maximum Drain Source Voltage | 50 V |
| Package Type | SOT-563 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 3 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 250 mW |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -40 V, +40 V |
| Number of Elements per Chip | 2 |
| Width | 1.25mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 1.7mm |
| Transistor Material | Si |
| Height | 0.6mm |
