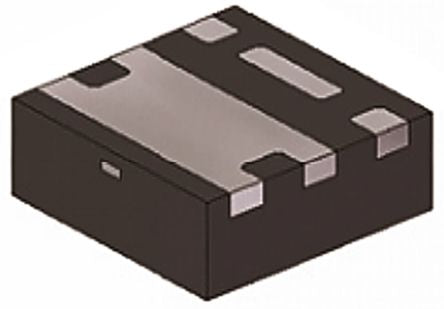

DMN4020LFDE-7 N-Channel MOSFET, 9.5 A, 40 V, 6-Pin U-DFN2020 Diodes Inc [DMN4020LFDE-7]; 170-8883
by DiodesZetex
0₫
Mã kho: 1708883
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 9.5 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | U-DFN2020 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 28 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.4V |
| Maximum Power Dissipation | 660 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 2.05mm |
| Transistor Material | Si |
| Width | 2.05mm |
| Height | 0.58mm |
| Typical Gate Charge @ Vgs | 19.1 nC @ 10 V |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
