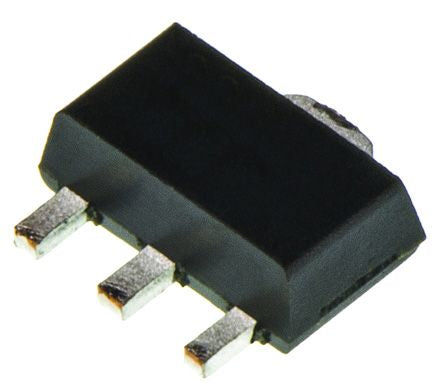

DMN30H14DLY-13 N-Channel MOSFET, 210 mA, 300 V, 3-Pin SOT-89 Diodes Inc [DMN30H14DLY-13]; 165-8399
by DiodesZetex
0₫
Mã kho: 1658399
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 210 mA |
| Maximum Drain Source Voltage | 300 V |
| Package Type | SOT-89 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 20 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 2.2 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Length | 4.6mm |
| Height | 1.6mm |
| Width | 2.6mm |
| Typical Gate Charge @ Vgs | 4 nC @ 10 V |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
| Minimum Operating Temperature | -55 °C |
