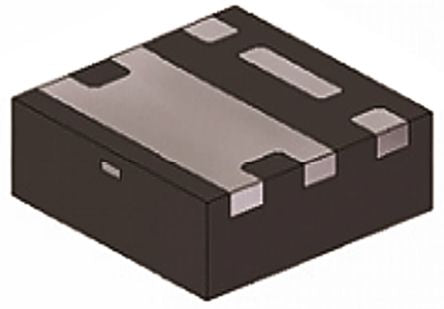

DMN3016LFDE-7 N-Channel MOSFET, 12 A, 30 V, 6-Pin U-DFN2020 Diodes Inc [DMN3016LFDE-7]; 122-3316
by DiodesZetex
0₫
Mã kho: 1223316
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0 |
| Maximum Drain Source Voltage | 30 V |
| Package Type | U-DFN2020 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 16 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 2.02 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 2.05mm |
| Height | 0.58mm |
| Maximum Operating Temperature | +150 °C |
| Width | 2.05mm |
| Typical Gate Charge @ Vgs | 25.1 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
