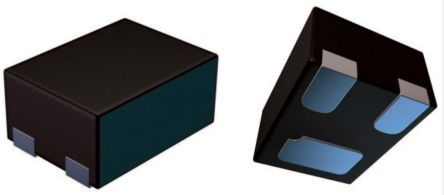

DMN2550UFA-7B N-Channel MOSFET, 600 mA, 20 V, 3-Pin X2-DFN0806 Diodes Inc [DMN2550UFA-7B]; 921-1060
by DiodesZetex
0₫
Mã kho: 9211060
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 600 mA |
| Maximum Drain Source Voltage | 20 V |
| Package Type | X2-DFN0806 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 1 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Minimum Gate Threshold Voltage | 0.4V |
| Maximum Power Dissipation | 360 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 1 |
| Width | 0.85mm |
| Typical Gate Charge @ Vgs | 0.88 nC @ 4.5 V |
| Length | 0.65mm |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1V |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Height | 0.35mm |
