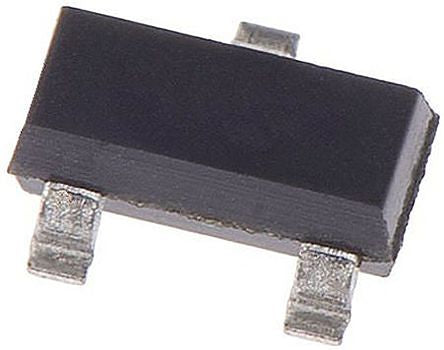

DMN2056U-7 N-Channel MOSFET, 4 A, 20 V DMN2056U, 3-Pin SOT-23 Diodes Inc [DMN2056U-7]; 133-3376
by DiodesZetex
0₫
Mã kho: 1333376
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.166666666666667 |
Maximum Drain Source Voltage | 20 V |
Package Type | SOT-23 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 85 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1V |
Minimum Gate Threshold Voltage | 0.4V |
Maximum Power Dissipation | 940 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -8 V, +8 V |
Number of Elements per Chip | 1 |
Maximum Operating Temperature | +150 °C |
Forward Diode Voltage | 1.2V |
Minimum Operating Temperature | -55 °C |
Series | DMN2056U |
Width | 1.4mm |
Height | 1mm |
Length | 3mm |
Typical Gate Charge @ Vgs | 4.3 nC @ 10 V |
