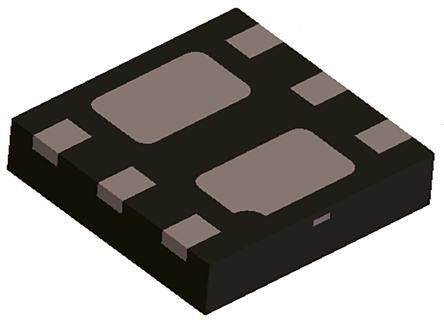

![DiodesZetex DMN2011UFDF-7 1333344](http://nguyenxuong.com/cdn/shop/products/R1333344-01_661c6160-6fc3-4fea-a79c-79e1a22b833b_444x323.jpg?v=1594392627)
DMN2011UFDF-7 N-Channel MOSFET, 14.2 A, 20 V DMN2011UFDF, 6-Pin U-DFN2020 Diodes Inc [DMN2011UFDF-7]; 133-3344
by DiodesZetex
0₫
Mã kho: 1333344
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 14.2 A |
Maximum Drain Source Voltage | 20 V |
Package Type | U-DFN2020 |
Mounting Type | Surface Mount |
Pin Count | 6 |
Maximum Drain Source Resistance | 35 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1V |
Minimum Gate Threshold Voltage | 0.4V |
Maximum Power Dissipation | 2.1 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Series | DMN2011UFDF |
Width | 2.05mm |
Height | 0.58mm |
Typical Gate Charge @ Vgs | 56 nC @ 10 V |
Length | 2.05mm |
Forward Diode Voltage | 1.2V |
Maximum Operating Temperature | +150 °C |
