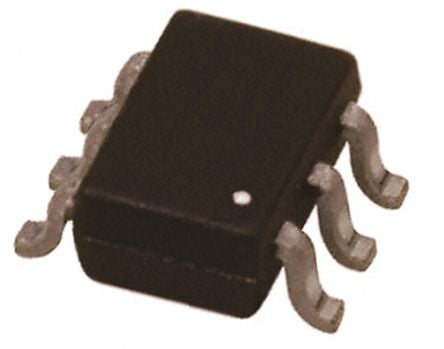

DMN2004DMK-7 Dual N-Channel MOSFET, 540 mA, 20 V, 6-Pin SOT-26 Diodes Inc [DMN2004DMK-7]; 823-2927
by DiodesZetex
0₫
Mã kho: 8232927
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 540 mA |
| Maximum Drain Source Voltage | 20 V |
| Package Type | SOT-26 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 900 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 225 mW |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 2 |
| Width | 1.7mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -65 °C |
| Length | 3.1mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1.3mm |
