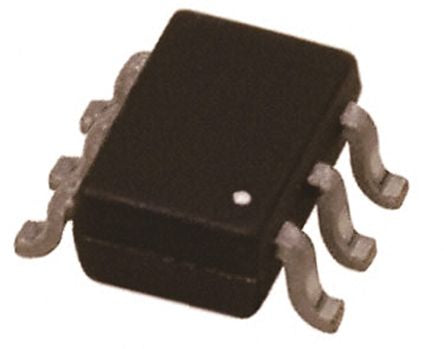

DMN2004DMK-7 Dual N-Channel MOSFET, 540 mA, 20 V, 6-Pin SOT-26 Diodes Inc [DMN2004DMK-7]; 122-3248
by DiodesZetex
0₫
Mã kho: 1223248
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 540 mA |
Maximum Drain Source Voltage | 20 V |
Package Type | SOT-26 |
Mounting Type | Surface Mount |
Pin Count | 6 |
Maximum Drain Source Resistance | 900 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 225 mW |
Transistor Configuration | Isolated |
Maximum Gate Source Voltage | +8 V |
Number of Elements per Chip | 2 |
Width | 1.7mm |
Minimum Operating Temperature | -65 °C |
Transistor Material | Si |
Length | 3.1mm |
Maximum Operating Temperature | +150 °C |
Height | 1.3mm |
