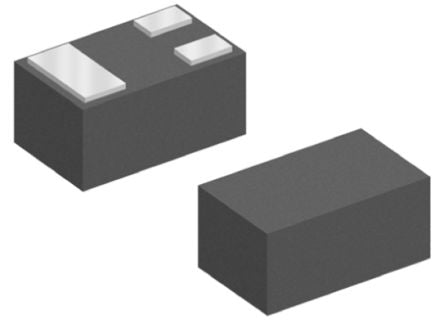

![DiodesZetex DMN1150UFB-7B 7904583](http://nguyenxuong.com/cdn/shop/products/R7904583-01_f5c4d3c5-dd86-49bf-851f-2dac6331335e_444x328.jpg?v=1594244339)
DMN1150UFB-7B N-Channel MOSFET, 1.4 A, 12 V, 3-Pin X1-DFN1006 Diodes Inc [DMN1150UFB-7B]; 790-4583
by DiodesZetex
0₫
Mã kho: 7904583
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 1.4 A |
Maximum Drain Source Voltage | 12 V |
Package Type | X1-DFN1006 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 210 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 500 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -6 V, +6 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 1.5 nC @ 4.5 V |
Length | 1.08mm |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Transistor Material | Si |
Width | 0.675mm |
Height | 0.48mm |
