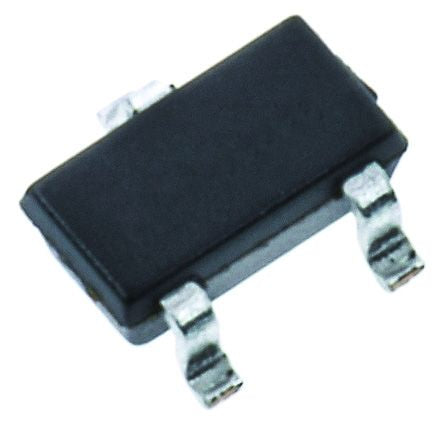

DMN1019USN-7 N-Channel MOSFET, 11 A, 12 V, 3-Pin SOT-346 Diodes Inc [DMN1019USN-7]; 165-8326
by DiodesZetex
0₫
Mã kho: 1658326
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.458333333333333 |
| Maximum Drain Source Voltage | 12 V |
| Package Type | SOT-346 (SC-59) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 41 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 0.8V |
| Minimum Gate Threshold Voltage | 0.35V |
| Maximum Power Dissipation | 1.2 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 1 |
| Height | 1.3mm |
| Typical Gate Charge @ Vgs | 50.6 nC @ 8 V |
| Length | 3.1mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
| Minimum Operating Temperature | -55 °C |
| Width | 1.7mm |
