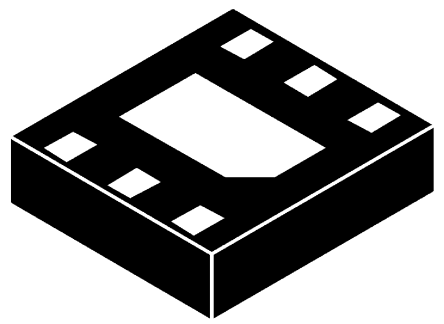

![DiodesZetex DMN1019UFDE-7 1690810](http://nguyenxuong.com/cdn/shop/products/L0396506-01_cf7a6edf-6002-45be-8c29-4170ebbc73f8_444x324.gif?v=1594286965)
DMN1019UFDE-7 N-Channel MOSFET, 11 A, 12 V, 6-Pin U-DFN2020 Diodes Inc [DMN1019UFDE-7]; 169-0810
by DiodesZetex
0₫
Mã kho: 1690810
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.458333333333333 |
Maximum Drain Source Voltage | 12 V |
Package Type | U-DFN2020 |
Mounting Type | Surface Mount |
Pin Count | 6 |
Maximum Drain Source Resistance | 41 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 0.8V |
Maximum Power Dissipation | 2.17 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -8 V, +8 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Height | 0.58mm |
Width | 2.05mm |
Length | 2.05mm |
Transistor Material | Si |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 50.6 nC @ 8 V |
