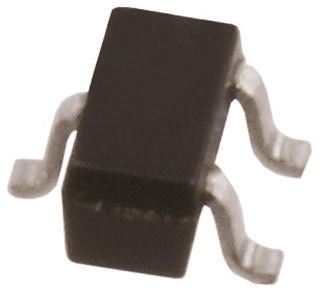

DMG1012T-7 N-Channel MOSFET, 630 mA, 20 V, 3-Pin SOT-523 Diodes Inc [DMG1012T-7]; 922-8367
by DiodesZetex
0₫
Mã kho: 9228367
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 630 mA |
| Maximum Drain Source Voltage | 20 V |
| Package Type | SOT-523 (SC-89) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 700 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 280 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -6 V, +6 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
| Height | 0.8mm |
| Typical Gate Charge @ Vgs | 0.737 nC @ 4.5 V |
| Length | 1.7mm |
| Width | 0.85mm |
