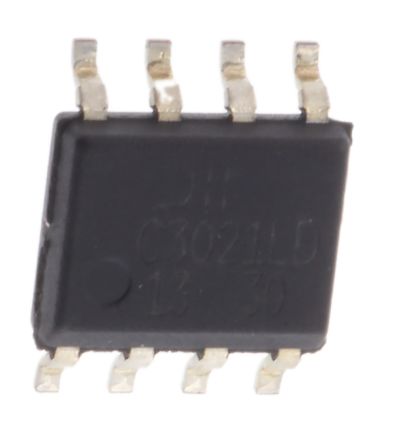

DMC3021LSD-13 Dual N/P-Channel MOSFET, 7 A, 8.5 A, 30 V, 8-Pin SOIC Diodes Inc [DMC3021LSD-13]; 122-0202
by DiodesZetex
0₫
Mã kho: 1220202
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N, P |
Maximum Continuous Drain Current | 7 A, 8.5 A |
Maximum Drain Source Voltage | 30 V |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 32 mΩ, 53 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.2V |
Maximum Power Dissipation | 2.5 W |
Transistor Configuration | Isolated |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 2 |
Width | 3.95mm |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
Height | 1.5mm |
Length | 4.95mm |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 16.1 nC @ 10 V, 21.1 nC @ 4.5 V |
