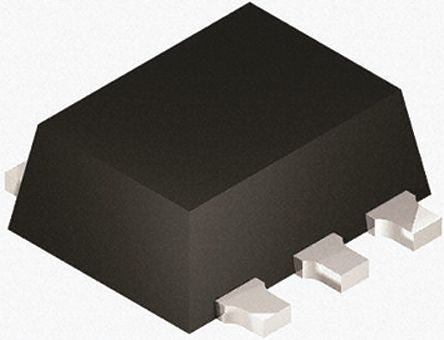

DMC2990UDJ-7 Dual N/P-Channel MOSFET, 190 mA, 520 mA, 20 V, 6-Pin SOT-963 Diodes Inc [DMC2990UDJ-7]; 823-2911
by DiodesZetex
0₫
Mã kho: 8232911
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | 190 mA, 520 mA |
| Maximum Drain Source Voltage | 20 V |
| Package Type | SOT-963 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 2.4 Ω, 5 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 350 mW |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 1.05mm |
| Width | 0.85mm |
| Height | 0.45mm |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 0.4 nC @ 4.5 V, 0.5 nC @ 4.5 V |
