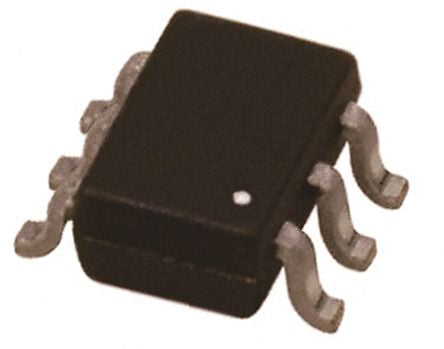

DMC2038LVT-7 Dual N/P-Channel MOSFET, 2.1 A, 5.2 A, 20 V, 6-Pin TSOT-26 Diodes Inc [DMC2038LVT-7]; 822-2508
by DiodesZetex
0₫
Mã kho: 8222508
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N, P |
Maximum Continuous Drain Current | 2.1 A, 5.2 A |
Maximum Drain Source Voltage | 20 V |
Package Type | TSOT-26 |
Mounting Type | Surface Mount |
Pin Count | 6 |
Maximum Drain Source Resistance | 56 mΩ, 168 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 1.1 W |
Transistor Configuration | Isolated |
Maximum Gate Source Voltage | -12 V, +12 V |
Number of Elements per Chip | 2 |
Length | 2.95mm |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 12 nC @ 10 V, 14 nC @ 10 V |
Width | 1.65mm |
Maximum Operating Temperature | +150 °C |
Height | 0.9mm |
