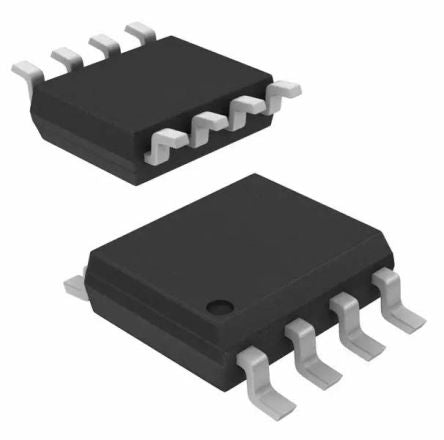

DiodesZetex DGD2104MS8-13 Dual Half Bridge MOSFET Power Driver, 290 (High) mA, 600 (Low) mA 8-Pin, SOIC [DGD2104MS8-13]; 146-4702
by DiodesZetex
0₫
Mã kho: 1464702
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Drivers | 2 |
| Minimum Operating Supply Voltage | 10 V |
| Maximum Operating Supply Voltage | 20 V |
| Topology | Half Bridge |
| Mounting Type | Surface Mount |
| Peak Output Current | 290 (High) mA, 600 (Low) mA |
| Number of Outputs | 1 |
| Polarity | Non-Inverting |
| Package Type | SOIC |
| Pin Count | 8 |
| Bridge Type | Half Bridge |
| Input Logic Compatibility | CMOS, TTL |
| High and Low Sides Dependency | Independent |
| Dimensions | 5 x 4 x 1.55mm |
| Length | 5mm |
| Rise Time | 170ns |
| Maximum Operating Temperature | +125 °C |
| Height | 1.55mm |
| Width | 4mm |
| Fall Time | 90ns |
| Minimum Operating Temperature | -40 °C |
