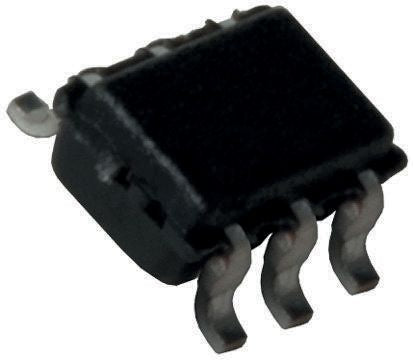

Linear Technology LTC6993CS6-2#TRMPBF Monostable Multivibrator +16mA, 6-Pin TSOT-23 [LTC6993CS6-2#TRMPBF]; 164-6068
0₫
Mã kho: 1646068
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | LTC |
| Logic Function | Monostable Multivibrator |
| Number of Elements per Chip | 1 |
| Maximum High Level Output Current | -16mA |
| Maximum Low Level Output Current | +16mA |
| Minimum Pulse Width | 1 μs |
| Maximum Propagation Delay Time @ Maximum CL | 28 ns @ 5 pF |
| Mounting Type | Surface Mount |
| Package Type | TSOT-23 |
| Pin Count | 6 |
| Dimensions | 2.9 x 1.75 x 0.9mm |
| Height | 0.9mm |
| Length | 2.9mm |
| Maximum Operating Temperature | +70 °C |
| Propagation Delay Test Condition | 5pF |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Supply Voltage | 2.25 V |
| Minimum Operating Temperature | 0 °C |
| Width | 1.75mm |
