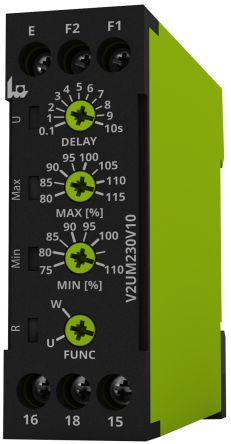

Tele Voltage Monitoring Relay With SPDT Contacts, 1 Phase, 24 V dc, 230 V ac/dc [V2UM230V10]; 123-9722
by Tele
0₫
Mã kho: 1239722
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 24 V dc, 230 V ac/dc |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Electrical Phase | 1 |
| Voltage Sensing Range | Maximum of 230 V ac/dc, Maximum of 24 V dc |
| Time Delay | 0.1 → 10 s, 300 ms |
| Standards Met | EN 60715, IEC 60947-5-1, IEC 61000-6-2, IEC 61000-6-4 |
| Minimum Operating Temperature | -25°C |
| Length | 22.5mm |
| Width | 76mm |
| Number of Poles | 1 |
| Maximum Operating Temperature | +60°C |
| Dimensions | 22.5 x 76 x 67 mm |
| Height | 67mm |
| Maximum Voltage Sensed | 24 V dc, 230 V ac/dc |
| Mounting Type | DIN Rail |
| Operating Temperature Range | -25 → +60 °C |
| Series | VEO |
| Terminal Type | Screw |
