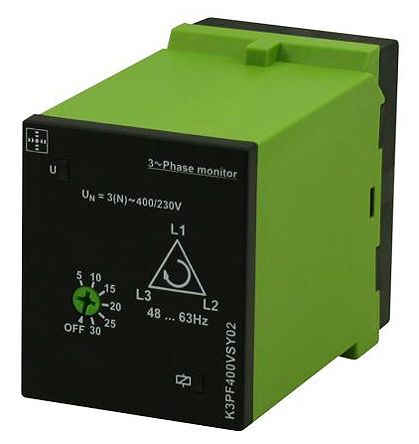

Tele Phase, Voltage Monitoring Relay With DPDT Contacts, 3 Phase, 230 → 400 V [K3PF400VSY02]; 123-9732
by Tele
0₫
Mã kho: 1239732
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Phase, Voltage |
Supply Voltage | 230 → 400 V |
Contact Configuration | DPDT |
Voltage Sensitivity | Self Powered |
Electrical Phase | 3 |
Voltage Sensing Range | 230 → 400 V |
Phase Sensitivity | Phase Failure, Phase Sequence |
Time Delay | 100 ms |
Dimensions | 38 x 67 x 51 mm |
Maximum Operating Temperature | +55°C |
Standards Met | EN 60715, IEC 60664-1, IEC 60668-1, IEC 60721-3-3, IEC 60947-5-1 |
Series | KAPPA |
Width | 67mm |
Height | 51mm |
Maximum Voltage Sensed | 400V |
Mounting Type | DIN Rail |
Terminal Type | Screw |
Operating Temperature Range | -25 → +55 °C |
Length | 38mm |
Minimum Operating Temperature | -25°C |
Minimum Voltage Sensed | 230 V |
Number of Poles | 11 |
