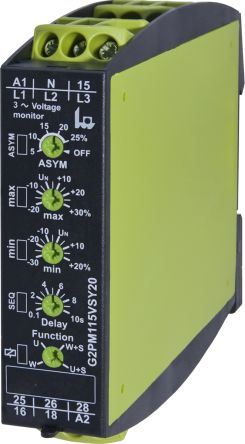

Tele Phase, Voltage Monitoring Relay With DPDT Contacts, 3 Phase, 12 → 400 V ac, 24 V dc [G2PM230VSY20 24-240V]; 123-9752
by Tele
0₫
Mã kho: 1239752
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 12 → 400 V ac, 24 V dc |
| Contact Configuration | DPDT |
| Voltage Sensitivity | Undervoltage |
| Electrical Phase | 3 |
| Voltage Sensing Range | 132 → 230 V |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Time Delay | 0.1 → 10 s |
| Number of Poles | 2 |
| Minimum Voltage Sensed | 132 V |
| Width | 108mm |
| Length | 22.5mm |
| Minimum Operating Temperature | -25°C |
| Height | 90mm |
| Operating Temperature Range | -25 → +55 °C |
| Maximum Voltage Sensed | 230V |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Standards Met | EN 60715, IEC 60068-2-27, IEC 60664-1, IEC 60668-2-6, IEC 60721-3-3, IEC 60947-5-1, UL 508 |
| Dimensions | 22.5 x 108 x 90 mm |
| Maximum Operating Temperature | +55°C |
| Series | GAMMA |
