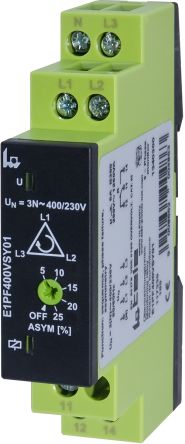

Tele Phase, Voltage Monitoring Relay With SPDT Contacts, 3 Phase, 230 → 400 V [E1PF400VSY01]; 123-9713
by Tele
0₫
Mã kho: 1239713
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 230 → 400 V |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Self Powered |
| Electrical Phase | 3 |
| Voltage Sensing Range | 230 → 400 V |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Time Delay | 100 ms |
| Height | 87mm |
| Maximum Voltage Sensed | 400V |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Dimensions | 17.5 x 65 x 87 mm |
| Maximum Operating Temperature | +55°C |
| Number of Poles | 1 |
| Minimum Operating Temperature | -25°C |
| Length | 17.5mm |
| Width | 65mm |
| Minimum Voltage Sensed | 230 V |
| Operating Temperature Range | -25 → +55 °C |
| Series | ENYA |
| Standards Met | EN 60715, IEC 60664-1, IEC 60668-1, IEC 60721-3-3, IEC 60947-5-1 |
