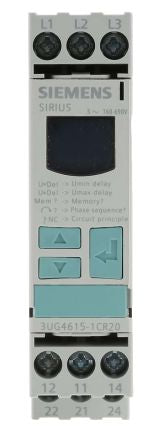

Siemens Phase, Voltage Monitoring Relay With DPDT Contacts, 3 Phase, 160 → 690 V ac [3UG4615-1CR20]; 518-7174
by Siemens
0₫
Mã kho: 5187174
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 160 → 690 V ac |
| Contact Configuration | DPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Electrical Phase | 3 |
| Voltage Sensing Range | 160 → 690 V ac |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Time Delay | 0.1 → 20 s |
| Height | 92mm |
| Width | 22.5mm |
| Length | 91mm |
| Dimensions | 91 x 22.5 x 92 mm |
| Minimum Voltage Sensed | 160 V ac |
| Maximum Voltage Sensed | 690V ac |
