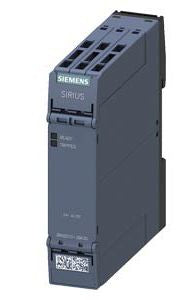

Siemens Thermistor motor temperature protection Monitoring Relay With DPDT Contacts, 24 V ac/dc [3RN2010-2BA30]; 175-2277
by Siemens
0₫
Mã kho: 1752277
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Thermistor motor temperature protection |
| Supply Voltage | 24 V ac/dc |
| Contact Configuration | DPDT |
| Voltage Sensitivity | Motor Voltage |
| Width | 91.6mm |
| Dimensions | 22.5 x 91.6 x 100 mm |
| Operating Temperature Range | -25 → +60 °C |
| Length | 22.5mm |
| Height | 100mm |
| Mounting Type | DIN Rail |
| Terminal Type | Cage Clamp |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
| Series | 3RN2 |
