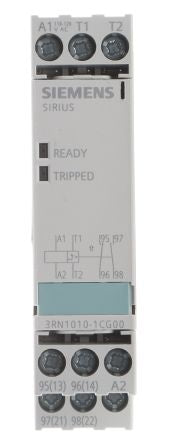

Siemens Thermistor motor protection relay Monitoring Relay With SPDT Contacts, 110 V ac [3RN1010-1CG00]; 746-6025
by Siemens
0₫
Mã kho: 7466025
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Thermistor motor protection relay |
| Supply Voltage | 110 V ac |
| Contact Configuration | SPDT |
| Temperature Sensitivity | Winding Temperature |
| Temperature Sensing Range | +60 → +180°C |
| Minimum Temperature Sensed | +60°C |
| Dimensions | 91 x 22.5 x 92 mm |
| Length | 91mm |
| Operating Temperature Range | -25 → +60 °C |
| Width | 22.5mm |
| Maximum Temperature Sensed | +180°C |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -25°C |
| Height | 92mm |
