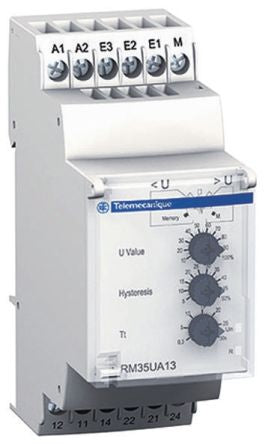

Schneider Electric Voltage Monitoring Relay With DPDT Contacts, 24 → 240 V ac/dc [RM35UA11MW]; 146-109
0₫
Mã kho: 146109
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 24 → 240 V ac/dc |
| Contact Configuration | DPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Voltage Sensing Range | 0.05 → 5 V |
| Time Delay | 0.3 → 30 s |
| Height | 90mm |
| Maximum Voltage Sensed | 5V |
| Operating Temperature Range | -20 → +50 °C |
| Width | 35mm |
| Length | 72mm |
| Dimensions | 72 x 35 x 90 mm |
| Maximum Operating Temperature | +50°C |
| Minimum Voltage Sensed | 0.05 V |
| Minimum Operating Temperature | -20°C |
