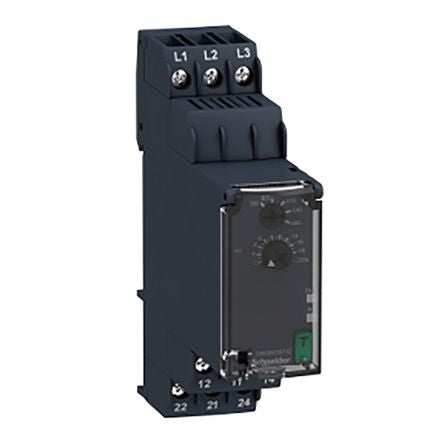

Schneider Electric Phase Monitoring Relay With DPDT Contacts, 3 Phase, 380 → 480 V ac [RM22TU23]; 179-9434
0₫
Mã kho: 1799434
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Phase |
Supply Voltage | 380 → 480 V ac |
Contact Configuration | DPDT |
Voltage Sensitivity | Overvoltage, Undervoltage |
Electrical Phase | 3 |
Voltage Sensing Range | <100 V ac |
Mounting Type | DIN Rail |
Terminal Type | Screw |
Series | Zelio Control |
Maximum Operating Temperature | +50 (60 Hz) °C, +60 (50 Hz) °C |
Dimensions | 22.9 x 79.5 x 90 mm |
Height | 90mm |
Maximum Voltage Sensed | 480V ac |
Operating Temperature Range | -20 → +50 (60 Hz) °C, -20 → +60 (50 Hz) °C |
Minimum Voltage Sensed | 380 V ac |
Width | 79.5mm |
Length | 22.9mm |
Current Range | 8 (AC) A, 10 (DC) mA |
Minimum Operating Temperature | -20°C |
